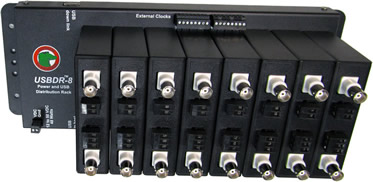

USBDR-8 Multi-Channel Powered Hub and Mounting Rack

Control Multiple USB Programmable Modules with One USB Link

Any of the USB programmable products can plug into the USBDR-8 to make a multi-channel system. Up to eight (8) USBPxx-S1 modules can be plugged into a single USBDR-8. Up to 24 modules can be controlled on a single USB link to the host PC by daisy-chaining multiple USBDR-8 units.

Key Features

• Power worldwide with universal AC adapter
• DC power from 12V to 50V source
• Install from 1 up to 8 channels per USBDR-8
• Daisy chain USBDR-8 to control up to 24 channels using just one USB port
• USB 2.0 compatible communication
• Synchronize all USBPxx-S1 operation in tracking or dynamic control applications
• Operate on table top, wall mount, rack mount or DIN rail mount
• Optional DIN rail connection kit for mounting the USBDR-8 to DIN rail
• Optional 19 inch aluminum rack mount plate available

Mounting Options

Mounting holes are located at both ends of the USBDR-8 enclosure and can be used to secure the unit to a table top, a wall, or an aluminum equipment rack panel. Optional DIN rail mounting brackets are available to secure the USBDR-8 to a variety of DIN rail types. A full 19 inch rack aluminum industrial rack bracket is also available for mounting on standard equipment racks.

Power Anywhere in the World

The universal AC adapter converts 100V to 250V, 50Hz or 60Hz power to DC. Where AC power is not available, the USBDR-8 can be powered from a DC source as small as 12V up to 50V. A minimum of 1.5A at 24V is required to operate a fully populated USBDR-8.

How to Order

The USBDR-8 comes complete with everything you need to connect, power, and integrate multiple USBPxx-S1 modules into your data collection system. Please fill out the Request Quote form and we will email our price list and complete information.
