USBPBP-S1 Programmable Gain Instrumentation Amplifier with Variable Frequency Band Pass Filter

Software-Controlled 8-Pole Low Pass + 4-Pole High Pass Band Pass Filter with Variable Gain Amplifier

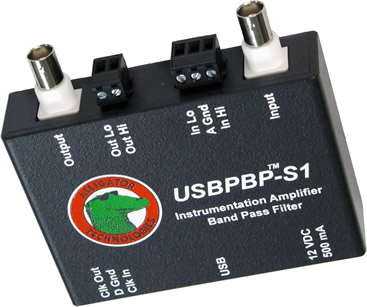

The USBPBP-S1 is a fully programmable single-channel instrumentation amplifier combined with an 8-pole low pass filter and 4-pole high pass filter. All parameters — gain, cutoff frequency of both the high pass and low pass filter — are controlled via USB.

Key Features

• Differential or single-ended input with ±40V protection
• Software-programmable instrumentation amplifier gains of 1 to 10000
• Programmable low pass filter corner frequency from 0.1 Hz to 200 kHz (model dependent)
• Programmable high pass filter corner frequency from 10 Hz to 41.5 kHz (model dependent)
• 8-pole low pass filter with choices of Butterworth, Bessel, Linear Phase, or Cauer/Elliptic
• 4-pole high pass filter (Butterworth or Bessel) for low frequency or DC bias removal. Useful for demodulation.
• Non-volatile memory retains settings after power cycle for "Turn Key" operation
• Compatible with any 12, 16, or 24-bit A/D converter
• Includes Windows control software and SDK with API examples

Available Factory Configured Filter Characteristics

Low Pass Filter Options (8-Pole)

• 8-Pole Butterworth — up to 100 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Bessel — up to 66 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Cauer/Elliptic — up to 50 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Cauer/Elliptic — up to 100 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Linear Phase — up to 100 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Linear Phase — up to 200 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots

High Pass Filter Options (4-Pole)

• 4-Pole Butterworth Normal (low range) — up to 1.275 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 4-Pole Butterworth Extended (high range) — up to 41.5 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 4-Pole Bessel Normal (low range) — up to 1.275 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 4-Pole Bessel Extended (high range) — up to 41.5 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots

Ideal for vibration analysis, precision sensor conditioning, and any application requiring clean anti-aliased signals with programmable gain.

Multi-channel Convenience

For multi-channel convenience populate the USBDR-8 USB and power distribution rack with USBPBP-S1 modules. The USBDR-8 can hold up to 8 modules and can be daisy chained to create very large channel counts with one host computer.

Connection to the Data Acquisition System

All I/O connections from the USBPBP-S1 are made via two BNC connectors or from the supplied removable screw terminal connectors.

How to Order

The USBPBP-S1 comes complete with everything you need to connect, power, program and quickly integrate into your data collection system. Please fill out the Request Quote form and we will email our price list and complete information.
